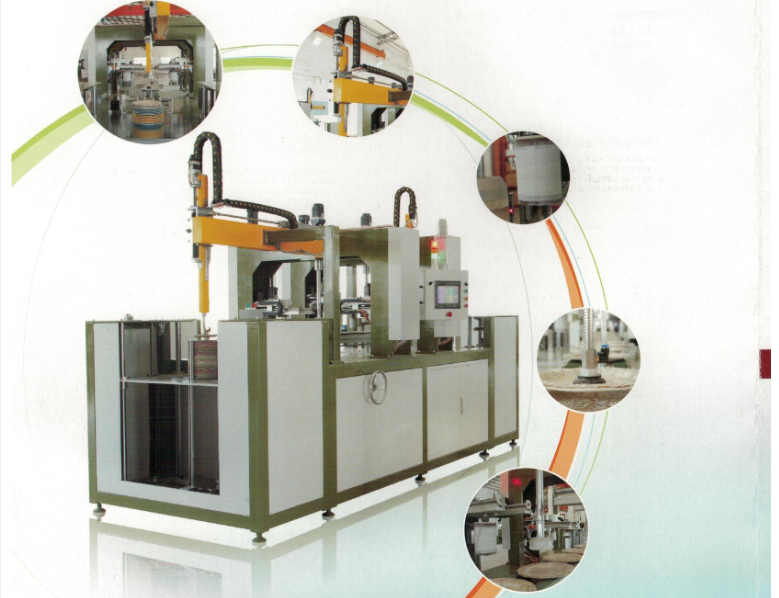

Auto Melamine Dinnerware Grinding Machine

The Machine can grind such as circle,ellipse,polygon and special shape tableware

item no.:
SHM-876
lead time:
50DAYS
product orgin:
CHINA
brand:
Shunhao
shipping port:
XIANMEN SEA PORT
payment:
TT/LC
color:
GREEN
MOQ:
1

inquiry now

features

Auto Melamine Dinnerware Grinding Machine

1: Problems encountered by melamine tableware manufacturers:

Difficulties in recruitment, seasonal orders, poor working conditions, high labor intensity, and difficult employee management.

2: automatic melamine tableware edging machine:

1) Machine points, coarse grinding, fine grinding, two grinding heads, automatic loading and unloading (receiving material, receiving material)

2) Two grinding heads are finely ground and two grinding heads are ground. The grinding head can be automatically lifted and lowered, and the height is automatically controlled.

3: Machine and Labor Comparison:

1 machine = 1.5 workers (11 hours)

2 machines = 3 workers (11 hours)

3 machines = 4-5 workers (11 hours)

At present, the wages of edging workers are about RMB 4000-6000/month (skilled workers)

The automatic edging machine only needs an ordinary porter to discharge and receive materials. One person can operate at least 3 machines. The equivalent of an ordinary porter can replace 4-5 skilled edging workers (11 hours).

Machines can be produced 24 hours a day in two shifts. Two ordinary porters can replace 8-10 skilled edging workers.

The average porter is about RMB2500-3500/month, the two porters are paid RMB5000-7000/month, and the three machines can save about RMB27000-53,000/month each month.

4: Machine cost recovery: monthly labor cost savings RMB27000-53000/month, each year the company can earn more RMB324000-636000

Auto Melamine Dinnerware Grinding Machine

5:Advantages of automatic edge grinding machine: simple operation, replacement of a product of different specifications as long as 5-10 minutes, no need for skilled workers, as long as a porter can work 24 hours, the workers stopped, the machine does not stop, operation safety In the peak season, customers can open more machines. In the off-season, they can open fewer machines. Enterprises can reduce expenses, reduce production costs, and reduce the burden on enterprises.

6: Automatic edging machine technical parameters:

Weight: 2.6TON

Volume: L3*W1.5*H2.2METER

Total power: 5KW

Electricity per hour: 0.3 kW

Working voltage: AC220V 50HZ

7: Edge size:

Maximum: 60CM

Minimum: 10CM

1:The machine grinds the burr automatically since it can judge the burr shape depends on the shape size of the tableware

2:It is able to adjust the grinding speed and depth according to the burr thickness

3:Rough grinder head make of high quality carborumdum and can repeatedly grinding more than ten thousands piece tableware products

4:Fine grinder head adopt flexible design,polishing the rough surface and sharp angle after rough grinding,to achieve the effect of zero burrs

5:Buffing wheel use polishing cloth wheel,which can set the rotate speed and times depend on customers requirements to achieve the polishing quality.

6:The position and height of the head can be set,all the head can be used perfectly since the can adjust the head position automatically when grinding

7:Stacked placement for delivering and receiving material,drastically reduce the personnel operation time.

8:The Machine can grind such as circle,ellipse,polygon and special shape tableware
